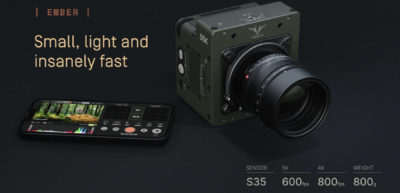

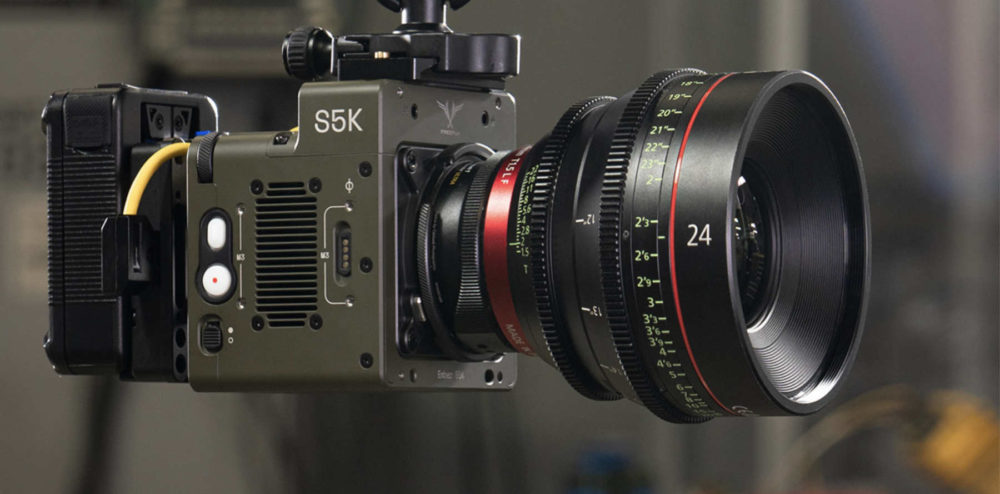

Freefly Ember is a Super 35 800FPS 4k High Speed Camera

Freefly Ember High Speed Camera Specs

Image Sensor

Format

S35

Native Aspect Ratio

5:4

Pixel Size

4.5μm x 4.5μm

Native Resolution

21MP 5120 x 4096

Active Area

23.04mm x 18.43mm

Shutter Type

Global Electronic

Native ISO

300

Lens Mount

Standard Lens Mount

E-mount Compatible

Removable

Yes



Positive Locking

Yes

Electronic

No

Recording

Media Internal NVMe SSD
Media Size 4TB
Format Apple ProRes
Native Bit Depth 10-bit
Resolutions / Frame Rates See Maximum Frame Rates

Power

DC Input Voltage Operation 12-26V
Power Consumption Standby 20W
Recording (Max Rate) 40W

Interface

DC Input 4-pin Molex Microfit
w/ CAN
HDMI Output HDMI A (Full Size)
1080p30
GPIO 6-Pin JST GH
Optically Isolated
Start/Stop/Sync
UART (3.3V or 5.0V)
USB Type C (Reversible)
USB 3.2 Gen1x1
SuperSpeed 5Gb/s
Wireless WiFi 5 (802.11ac)
Ethernet RJ45 Connector
1000BASE-T (GigE)

Other Features

Firmware Update via USB-C
Upgradeable Storage Yes
On-Board IMU Yes
LCD No
Audio Recording No
Autofocus No

Physical

Dimensions w/ E-mount 100mm Width x 104mm Height x 86mm Depth
Weight w/ E-mount 820g
Mounting Points 1/4-20 2: 1x Top, 1x Bottom
M3 24: 4x per Side

Environmental

Operating Temperature 0ºC to 40ºC
Ingress Protection IP52

More details on the official FreeFly Systems website.
