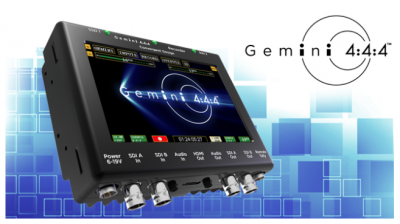

Convergent Design Gemini 4:4:4 Recorder

The Gemini 4:4:4 is a professional, high-definition video recorder that fits in the palm of your hand. Gemini 4:4:4 functions as a high-quality monitor, a recorder, and a playback device.

As a recorder, Gemini 4:4:4 records in the ultimate highest quality possible—uncompressed, which can easily be incorporated into virtually any workflow using your favorite CODEC. Gemini 4:4:4 is also capable of recording, combining, and playing back 3D video (with paid upgrade).

Gemini 4:4:4 records to specially certified and tested 1.8” solid-state hard drives that can be purchased from Convergent Design through your local dealer.



Screen Shot 2013-11-16 at 1.21.34 pm


Data Rates



Format Data Rate(MB/Sec) 512 GB(Minutes) 2x 512 GB(Minutes)  Required SSD’s

ARRIRAW (16:9) @ 24fps

168

50

100

1

ARRIRAW (16:9) @ 30fps

210

41

82

1

ARRIRAW (16:9) @ 50fps

350

24

48

2x 512 GB

ARRIRAW (16:9) @ 60fps

420

20

40

2 x 512 GB
ARRIRAW (4:3) @ 24fps 221 37 75 2
ARRIRAW (4:3) @ 30fps 280 30 61 2
ARRIRAW (4:3) @ 48fps 447 34 2x 512 GB

The Gemini 4:4:4 leads the industry as the smallest, lightest weight, lowest power uncompressed / ARRIRAW recorder. Unlike competitive products, Gemini 4:4:4 includes a built-in 5.0″ LCD monitor, full raster (1920×1080) debayered ARRIRAW output, full support for ARRIRAW at 60fps without expensive hardware upgrades or the purchase of faster drive media.

The Gemini 4:4:4 production kit includes an SSD transfer station and the ARRIRAW Option includes a DC-to-DC Converter for surge protection and powering the Gemini from the ALEXA, all for less than 25% the cost of competitive solutions!
